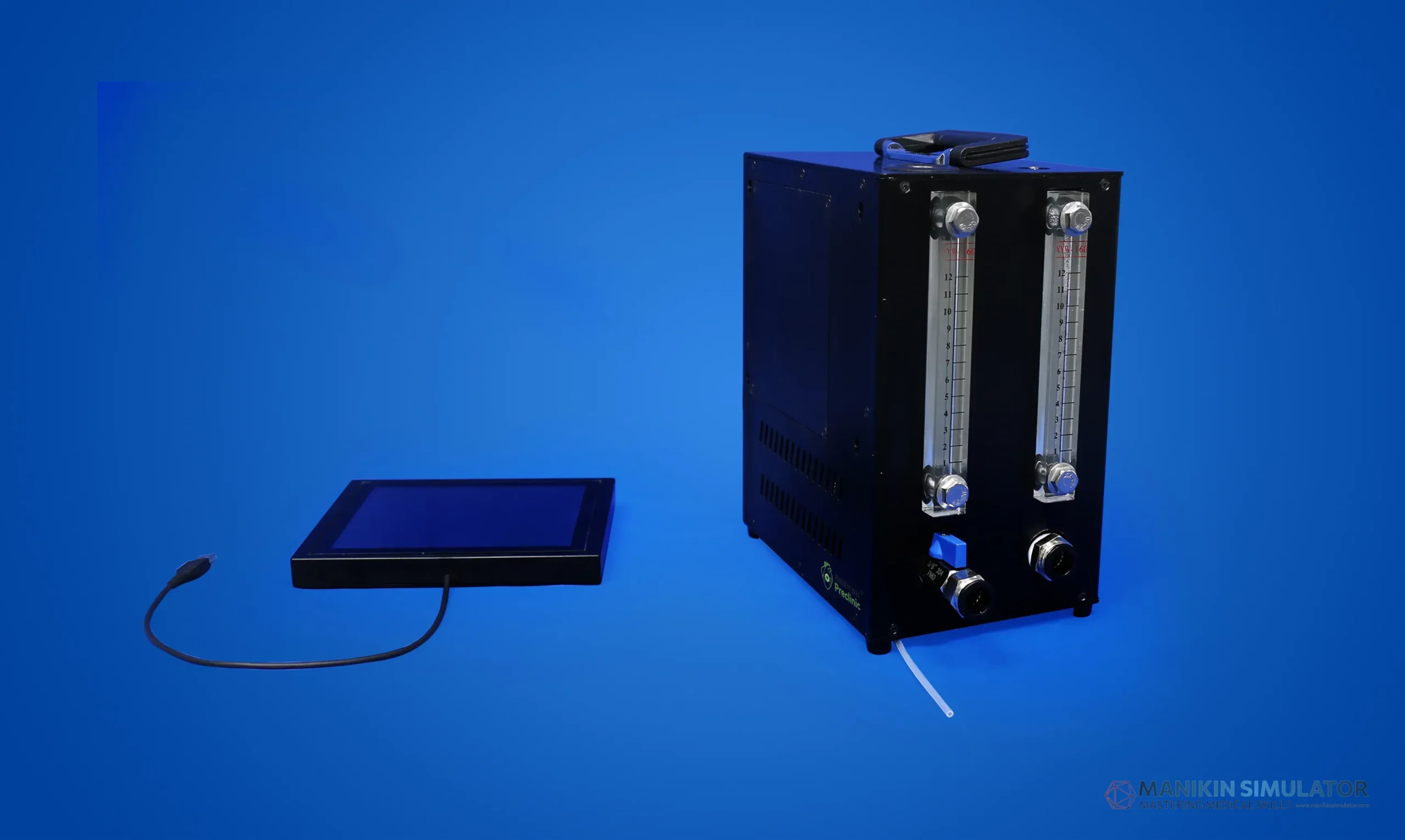

Large flow pulsation pump

This product is used to generate periodic pulsating fluids, simulate human heart beating, and dynamically simulate arterial and venous blood vessels, including periodic pulsating circulation, liquid temperature control, and pressure monitoring. It can be used for relevant experimental research by medical R&D personnel. The liquid circulation module can achieve liquid heating, temperature control, and circulation. The control module can control the amplitude, frequency, flow rate, pressure, and temperature of the driving motor.

Large flow pulsation pump PDF
Download
Pesan Sekarang

Description

Large flow pulsation pump adalah pompa sirkulasi medis canggih yang mampu menghasilkan aliran berdenyut (*pulsatile flow*) dengan debit tinggi. Dirancang untuk mensimulasikan curah jantung manusia (*cardiac output*).

Ideal untuk menguji perangkat implan vaskular ukuran besar atau model vaskular seluruh tubuh. Dilengkapi layar sentuh untuk pengaturan presisi: frekuensi detak (BPM), temperatur cairan, dan tekanan sistolik/diastolik.

Spesifikasi Teknis

Fitur

  • Accurate biomimetic pulsation simulation: It can generate periodic pulsating fluids, reproduce human heart beats, achieve dynamic simulation of arterial and venous blood vessels, adapt to customized artificial simulated blood vessels, and assist in the performance evaluation of delivery, retraction, and other aspects of implantable medical devices.

  • Multi scenario practical adaptation: It is not only an experimental power source for medical research and development, but also an auxiliary equipment for instrument operation training for doctors/R&D personnel, helping to improve surgical proficiency and shorten actual surgical time.

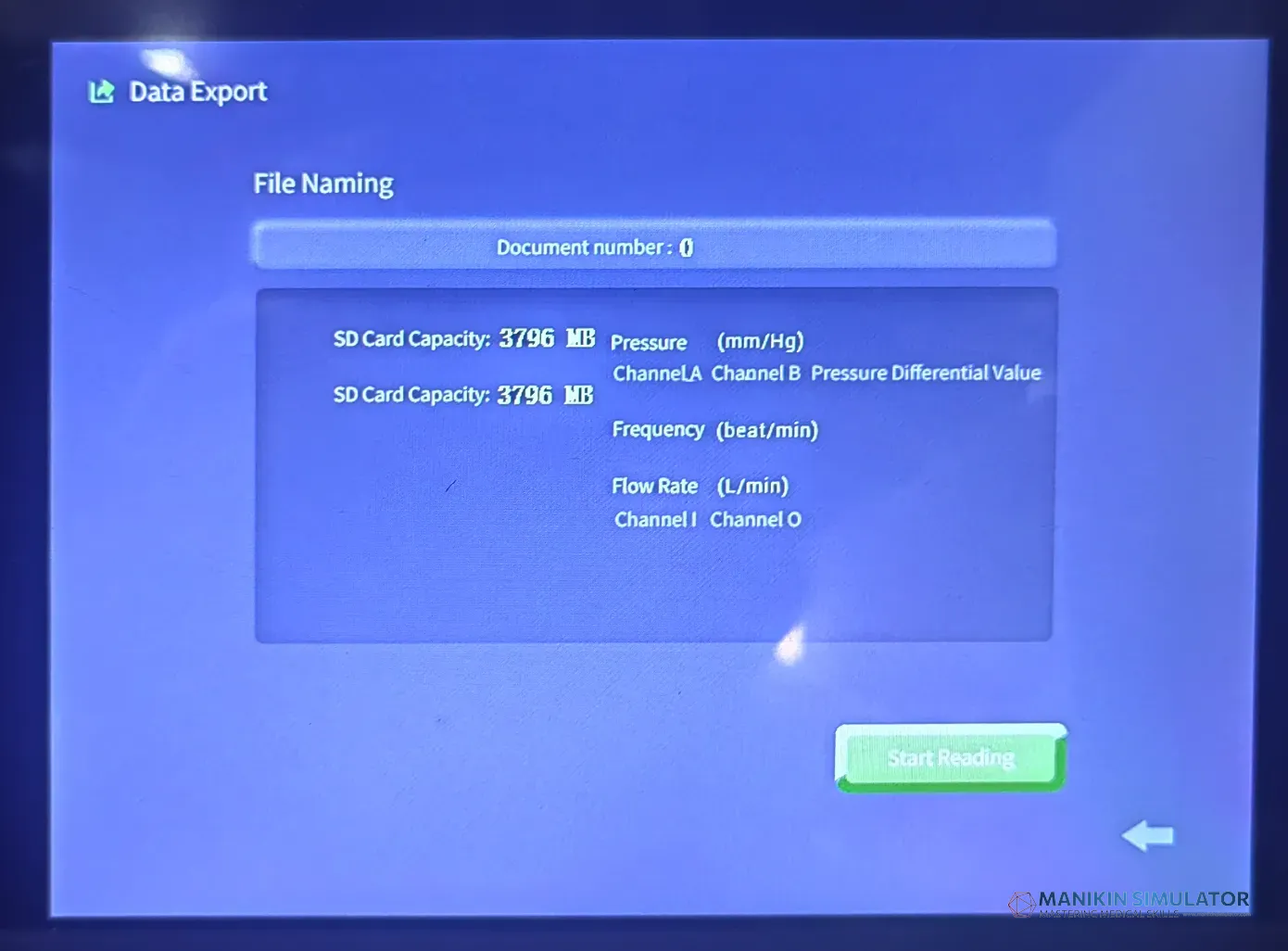

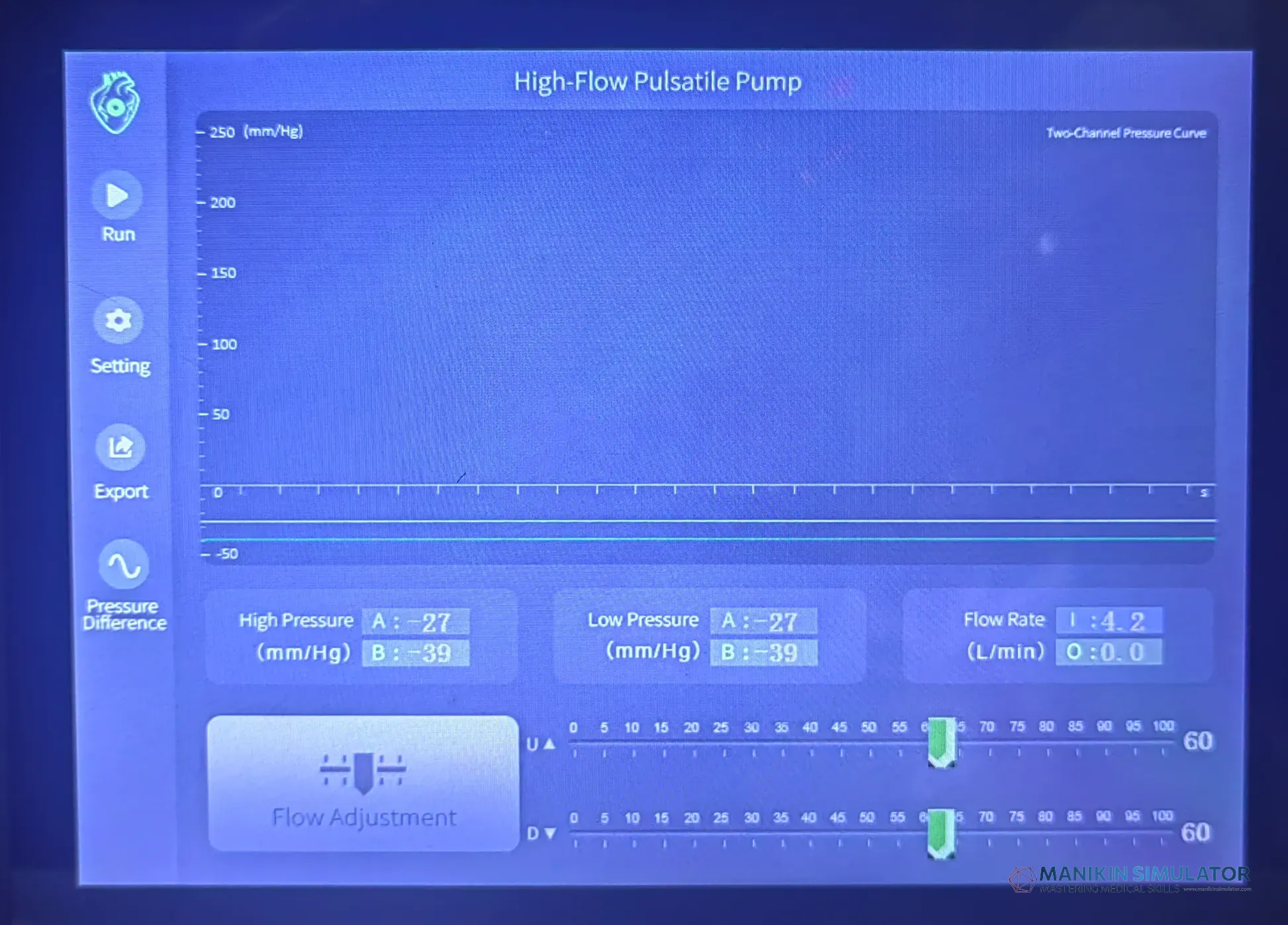

  • High quality configuration+precise control: Made of aluminum alloy sandblasted oxide material, paired with an 8-inch central touch screen, supporting precise adjustment of parameters such as flow, pressure, temperature, etc., and can also be equipped with professional sensing equipment for enhanced monitoring.

PN PLPTXG003
NW10KG

Product Parameters

  • Fluid medium：Water, glimpse, blood flow simulation

  • Voltage/Frequency：90~240VAC/50~60Hz

  • Pulsation frequency：20~180 Beat/min

  • Cardiac output：5.5 L/min@Max (72 Beat/min)

  • Pressure range：0~250mmHg

  • Pressure accuracy：±2mmHg

  • Control accuracy：±0.5℃

  • Maximum power：850W

Product SizeModel length: 29 cm

Model width: 16 cm

Model height: 29 cm

Lead Time15 days
OriginShanghai, China

Drawing of Large flow pulsation pump

Drawing of Large flow pulsation pump

Frequently Asked Questions

Q: Berapa debit maksimalnya?

A: Mampu mencapai aliran hingga 5-6 Liter/menit, setara dengan *Cardiac Output* dewasa normal.

Q: Apakah bisa mengatur suhu cairan?

A: Ya, memiliki pemanas internal dan kontrol suhu presisi (misal 37°C).

Q: Apakah gelombangnya bisa diubah?

A: Mendukung pengaturan kurva pulsasi untuk meniru kondisi fisiologis atau patologis tertentu.

Untuk informasi lebih lanjut mengenai spesifikasi detail atau pemesanan kustom, silakan kunjungi halaman Hubungi Kami.

Produk simulator medis kami dirancang dengan material berkualitas tinggi yang selaras dengan standar keselamatan kesehatan internasional seperti yang dirujuk oleh World Health Organization (WHO).
