Neurovascular Operation Training Model-Type C

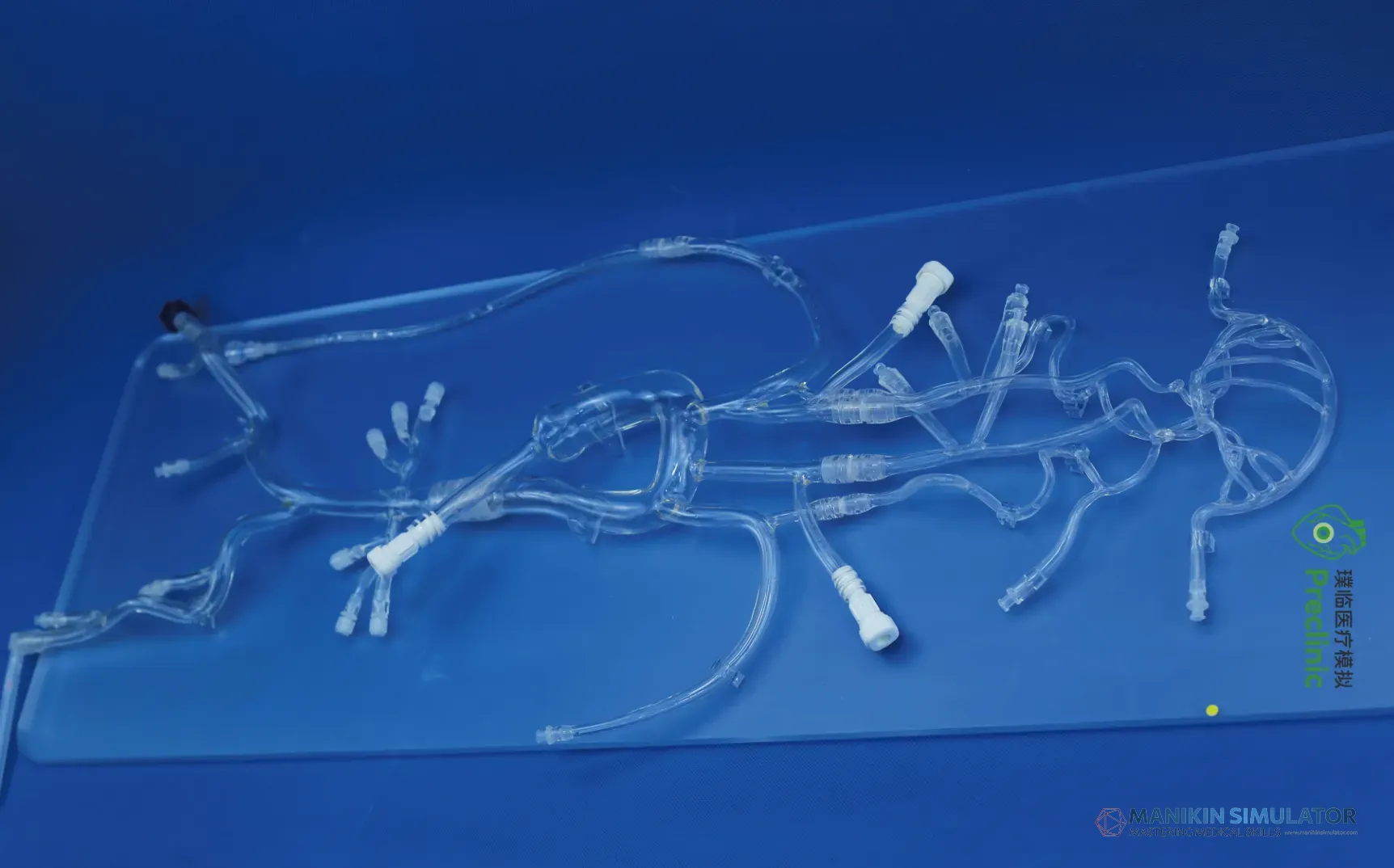

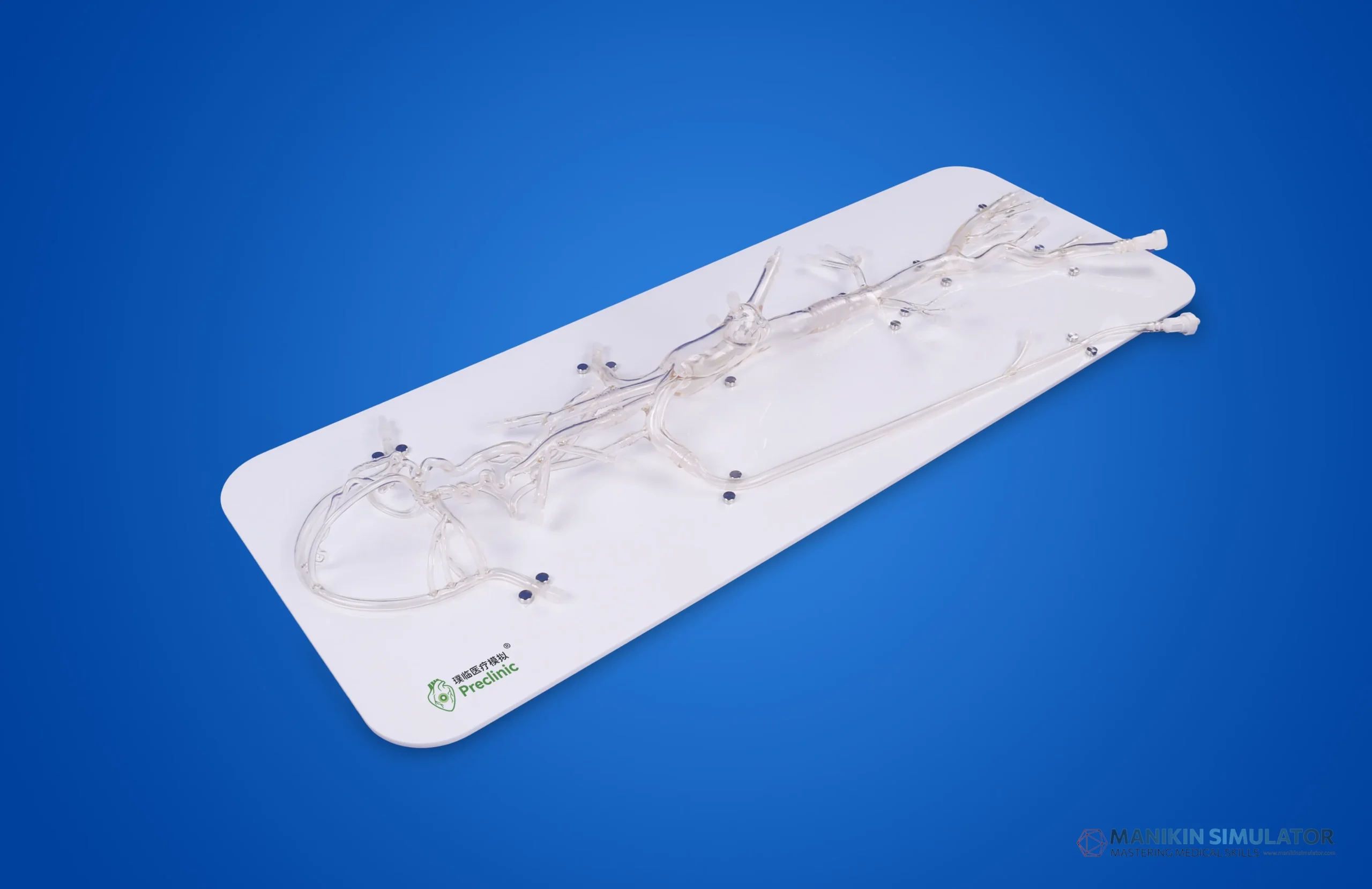

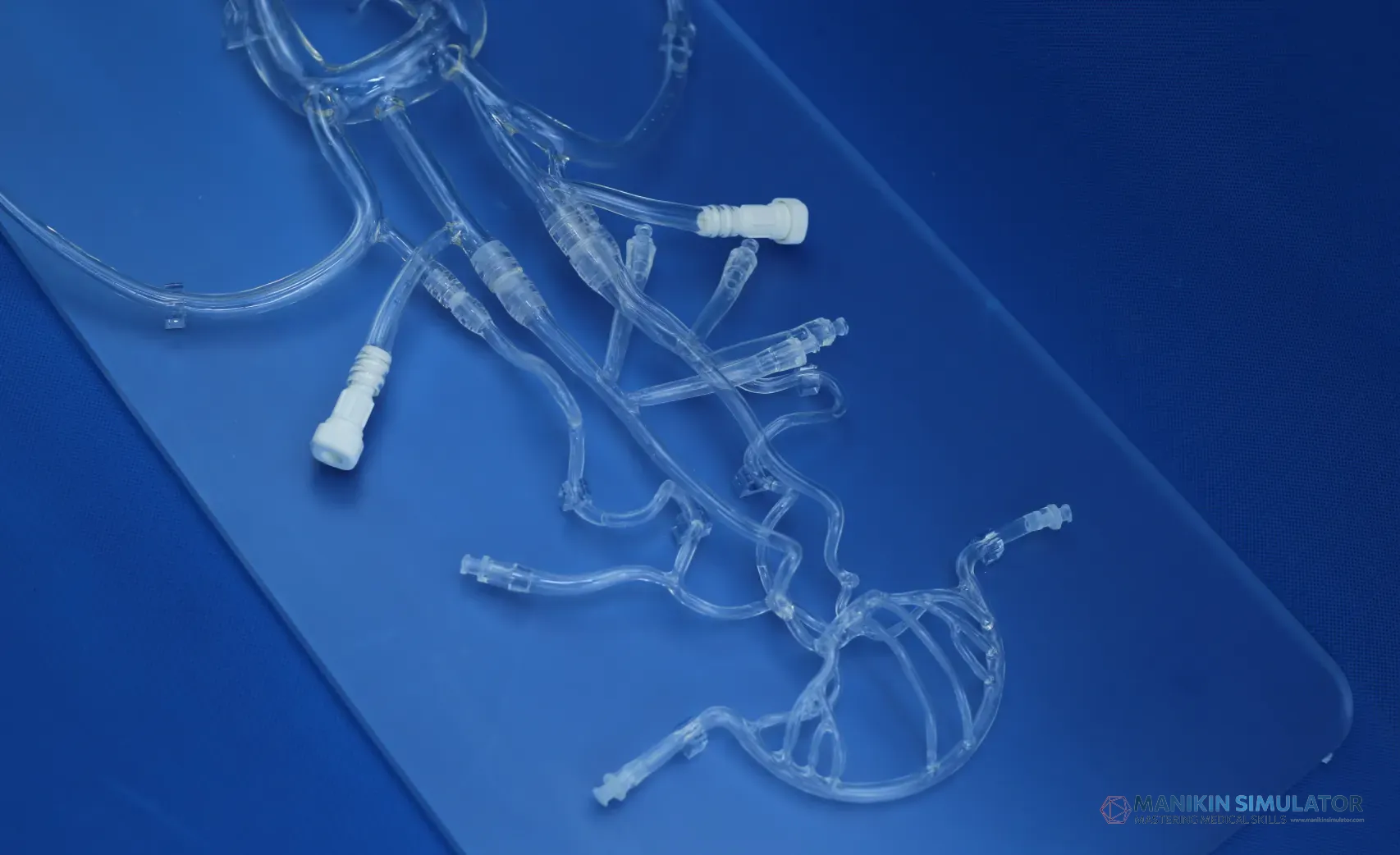

This product is mainly made of high transparent soft silica gel, which is used for surgical training related to intracranial artery interventional diagnosis and treatment, performance test and function demonstration of surgical instruments. The surgical instruments involved include intracranial vascular interventional guide wire, catheter, stent, spring coil, thrombectomy device, thrombus filter and other instruments.

Neurovascular Operation Training Model-Type C PDF
Download
Pesan Sekarang

Description

Neurovascular Operation Training Model-Type C didesain dengan struktur planar 2D yang efisien namun tetap anatomis 1:1. Mengacu pada data CT klinis untuk mereplikasi ukuran lumen arteri intrakranial secara presisi.

Desain *flat* ini memudahkan transportasi dan *setup* cepat, menjadikannya pilihan ideal untuk demonstrasi produk portabel atau pelatihan massal. Mencakup parameter anatomis kunci seperti sudut lekukan segmen kavernosa ICA.

Spesifikasi Teknis

Features

  • Based on human clinical CT/MRI imaging data design, 1:1 accurate simulation of intracranial arterial lumen size, complete restoration of key anatomical parameters such as ICA cavernous sinus segment bending angle, posterior communicating artery diameter, and anterior/middle/posterior cerebral artery length, accurately covering the prone locations of aneurysms, providing a realistic anatomical basis that fits Chinese people for interventional training and instrument testing.

  • By adopting a vascular planar layout structure, the vascular morphology is simplified while significantly reducing the size and weight of the model, making it easy to transport, store, and use in multiple scenarios, while effectively controlling costs and lowering the threshold for use.

  • Support the testing of interventional instruments such as guiding catheters and balloon dilation stents, and can conduct surgical training such as angiography and balloon dilation; Simultaneously supporting customized modules for aneurysms and stenosis lesions at different locations, meeting diverse testing, training, and display needs.

PNPLSJXG001C

Main Material

Highly transparent soft silica gel, hardness: 30A

Product SizeModel length: 89 cm

Model width: 50 cm

Model height: 34 cm

Lead Time15 days
OriginShanghai, China

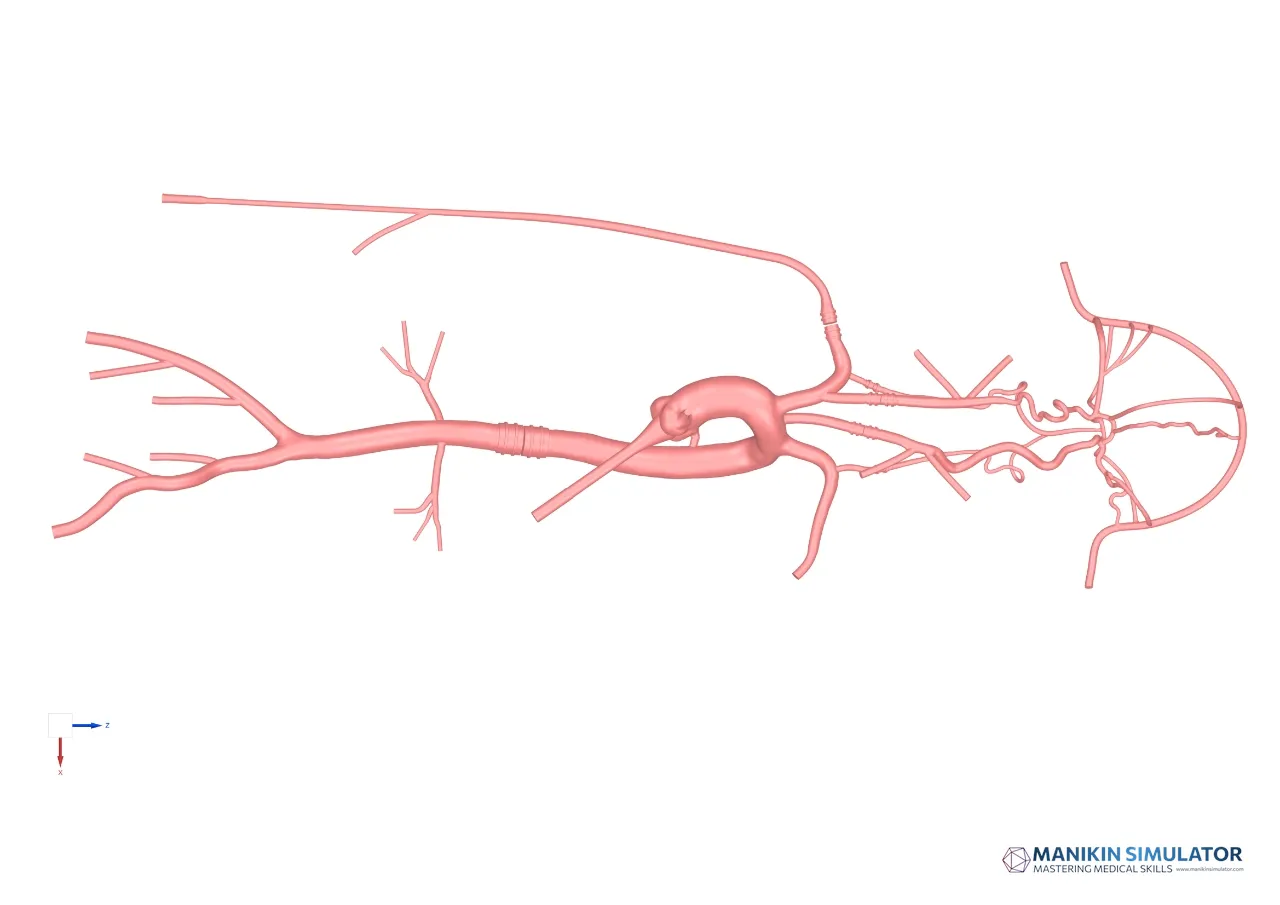

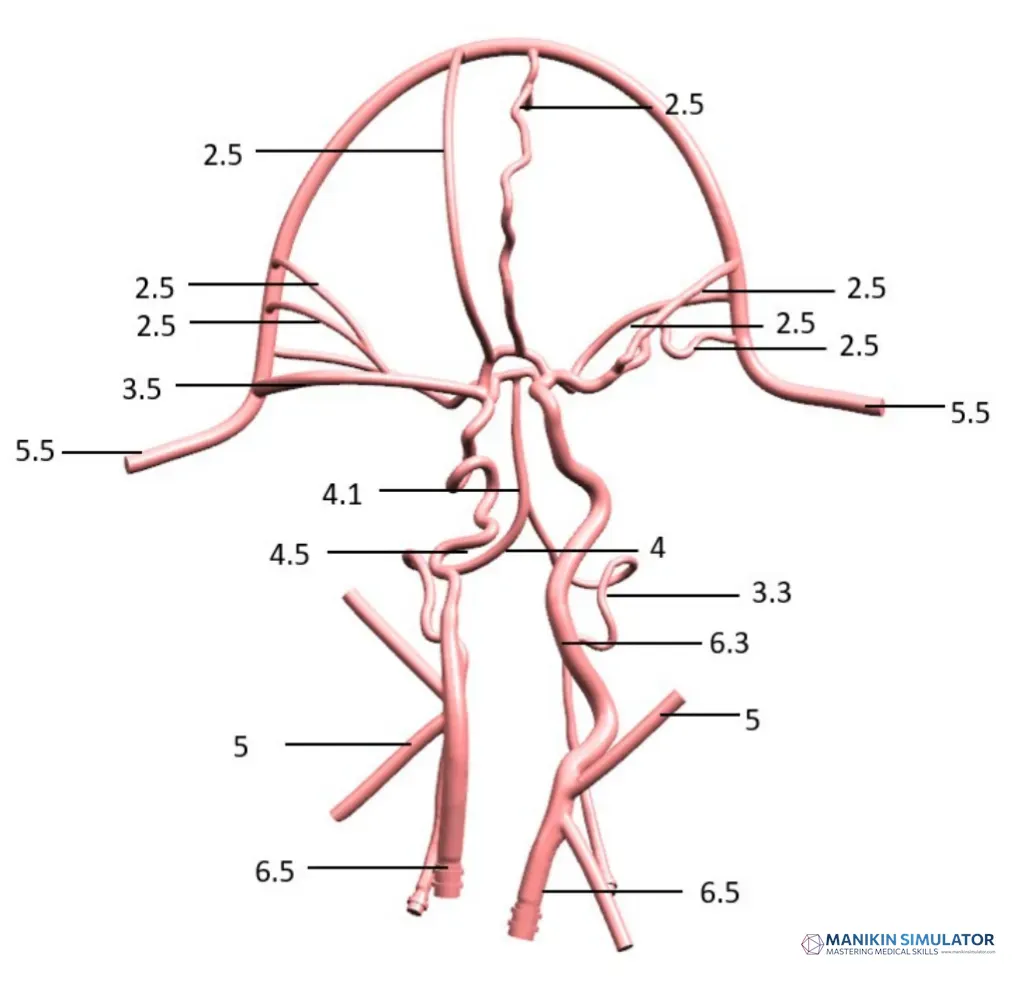

Drawing of Neurovascular Operation Training Model-Type C

Drawing of Neurovascular Operation Training Model-Type C
Drawing of Neurovascular Operation Training Model-Type C

Frequently Asked Questions

Q: Kenapa bentuknya planar (datar)?

A: Untuk mengurangi berat dan volume, memudahkan dibawa-bawa tanpa mengurangi akurasi diameter lumen internal.

Q: Apakah tetap memiliki aneurisma?

A: Ya, tetap mencakup lokasi-lokasi predileksi aneurisma untuk latihan koiling.

Q: Aksesnya dari mana?

A: Tetap mendukung simulasi akses dari femoralis maupun radialis melalui konektor yang disediakan.

Untuk informasi lebih lanjut mengenai spesifikasi detail atau pemesanan kustom, silakan kunjungi halaman Hubungi Kami.

Produk simulator medis kami dirancang dengan material berkualitas tinggi yang selaras dengan standar keselamatan kesehatan internasional seperti yang dirujuk oleh World Health Organization (WHO).
